SPRINKLER SYSTEM
Systems Safety Solution Pvt. Ltd. offers design, supply, and installation of Automatic Fire Sprinkler Systems tailored to commercial, residential, and industrial environments. Our systems are engineered to meet NFPA 13 and BS EN 12845 standards and ensure reliable, code-compliant fire suppression.
What Is a Fire Sprinkler System?
A fire sprinkler system automatically detects and suppresses fires using heat-activated sprinkler heads connected to a pressurized water supply. These systems are highly effective in stopping fires at an early stage—saving lives, assets, and business continuity.
System Types We Offer
1. Wet Pipe Sprinkler System
Water-filled pipes
Most common and cost-effective
Ideal for areas where freezing is not a concern
2. Dry Pipe Sprinkler System
Pipes filled with pressurized air or nitrogen
Water is released when a fire is detected
Suitable for cold storage, parking areas, or warehouses
3. Pre-Action System
Water is held back by an electrically controlled valve
Used in data centers, museums, and sensitive areas
Prevents accidental discharge
4. Deluge System
Open sprinkler heads with rapid flood control
Activated by heat or flame detection systems
Suitable for high-hazard areas like chemical plants or power stations
System Components
Our complete sprinkler system includes:

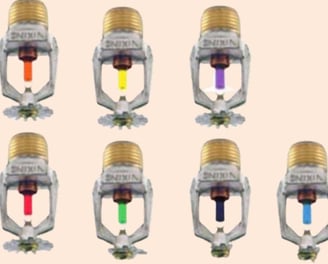

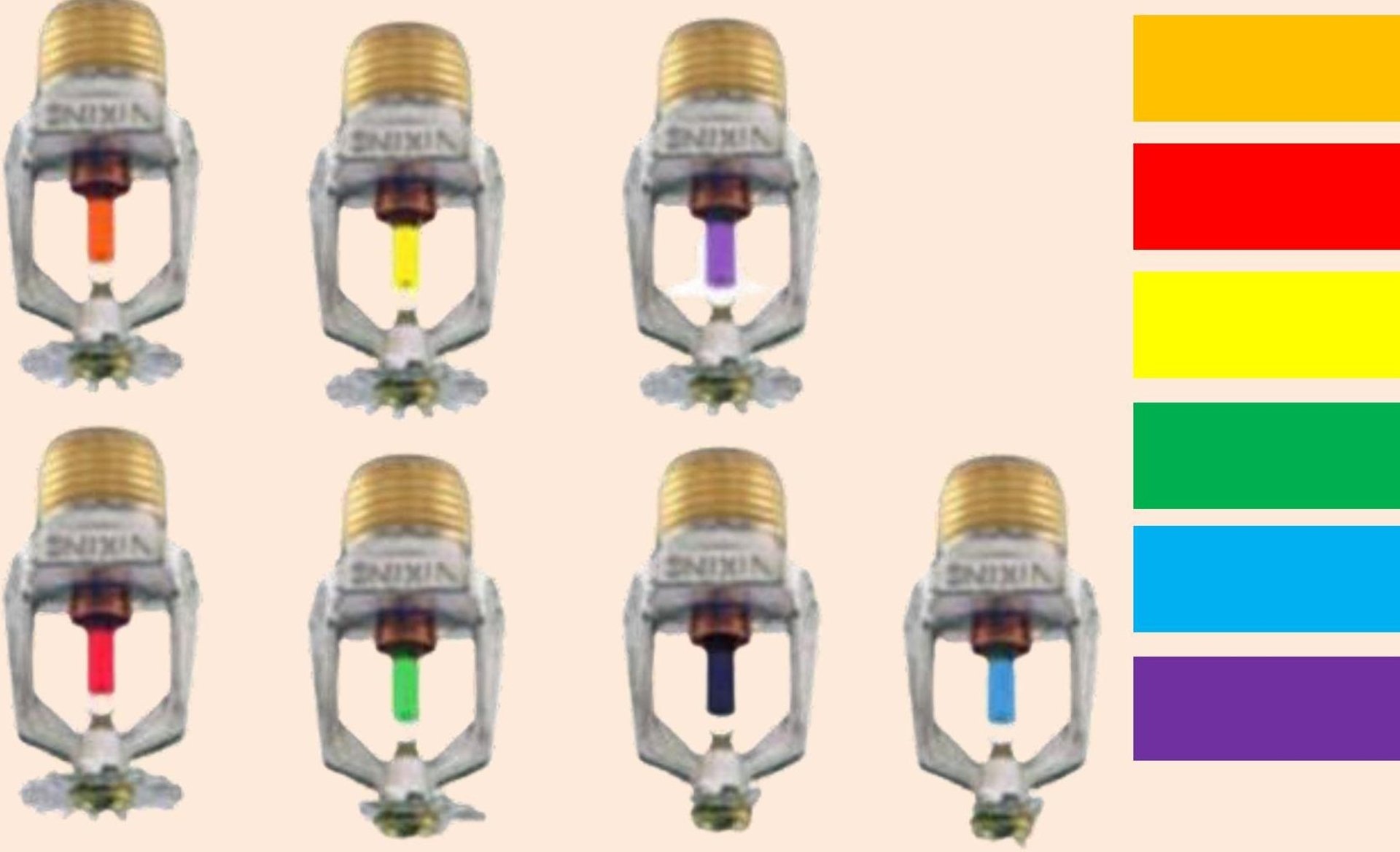

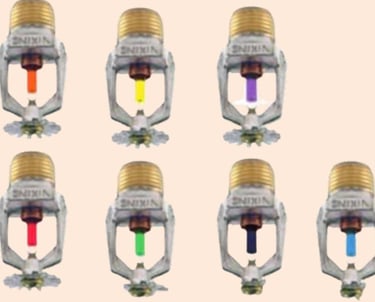

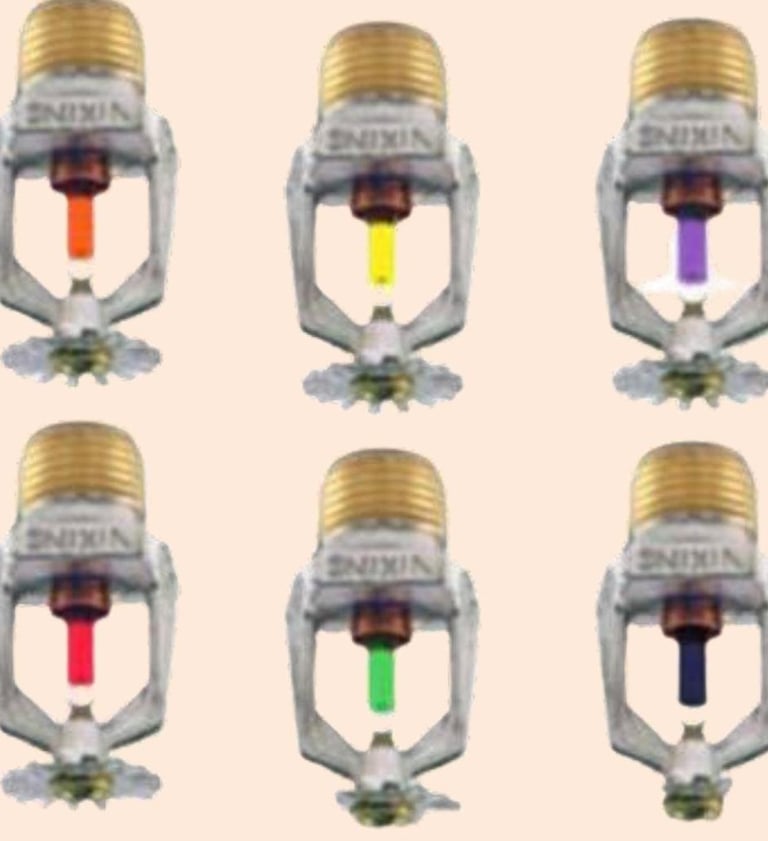

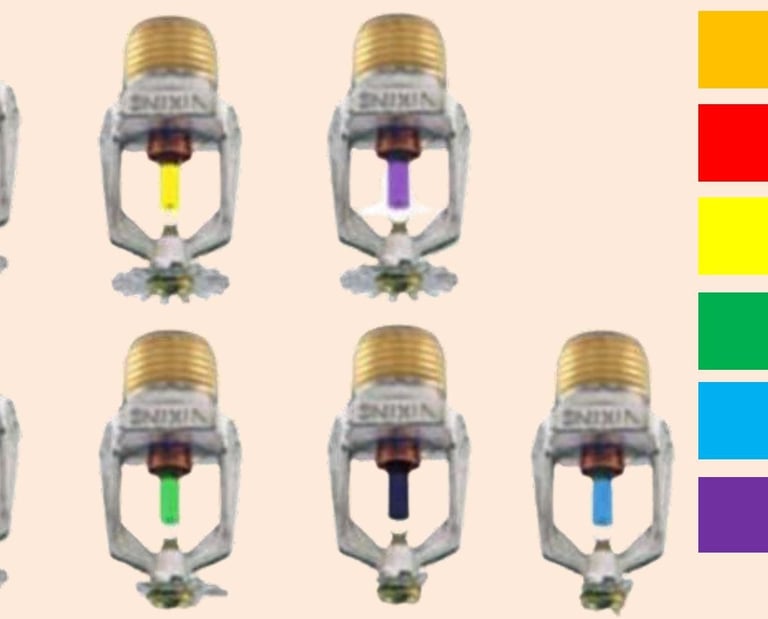

Sprinkler Heads (standard/quick response, pendant/upright/sidewall)
Piping Network (black steel, GI, or CPVC as per project scope)
Control Valves (alarm check, deluge, pre-action, and zone control)
Fire Pump Set (electric, diesel, jockey)
Water Storage Tank or City Water Connection
Flow Switches, Pressure Gauges, Test & Drain Assemblies
Alarm Systems (audible and visible indicators)
Our Services
System Design
Hazard classification per NFPA 13
Hydraulic calculations using software (looping, tree, grid systems)
Sprinkler head placement, coverage radius, and zoning
Installation
Pipe routing through slabs, ceilings, and walls
Valve stations, alarm connections, and test lines
Riser room and pump room setup
Testing & Commissioning
Hydrostatic pressure testing
Sprinkler head activation tests
Alarm system integration and flow tests
Certificate of compliance issued post-testing
AMC & Support
Monthly and annual inspections
Head cleaning, valve testing, and flushing
Emergency repairs and retrofit upgrades
Benefits of Our Sprinkler Systems
Automatic & Instant Fire Response
Minimizes Fire Spread & Damage
Customizable for Any Building Type
Compliance-Ready for Government Approvals
Sample Specification
System Type: Wet pipe, NFPA 13 compliant
Coverage Area: Light hazard occupancy
Sprinkler Head Spacing: 12 ft × 12 ft (max)
Water Source: 50,000-litre underground tank + 2,500 LPM fire pump
Pipe Size: 25 mm to 150 mm (Schedule 40)
Alarm: Water motor gong + hooter/strobe
Testing: Hydrostatic @ 200 psi for 2 hours
